Vitiny HDMI Digital Microscope 2-in-1 Upgrade with Inspection+Image Capture Function (UM08C Series)
Category: Digital MicroscopeDigital Microscope
Specifications
Details
Full HDMI Auto Focus Digital Microscope UM08C is upgrade 2-in-1 inspection + image capture and suitable for speedy inspection on industrial production line by MSP Metrology (M) Sdn Bhd from Vitiny Taiwan
Features
ViTiny UM08C Series

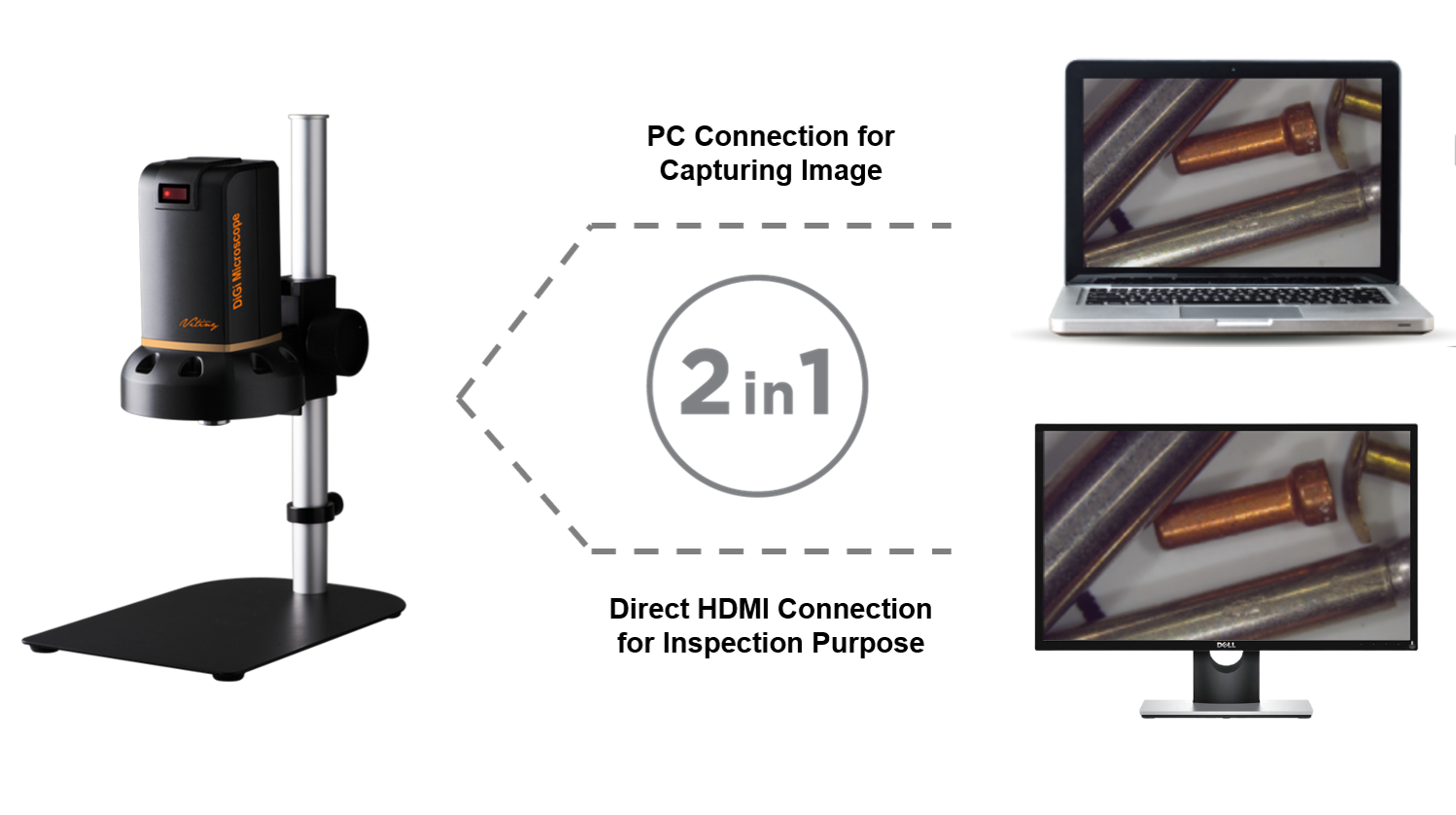

Upgrade 2-in-1 Inspection + Capture Image via Software
ViTiny UM08C Tabletop HDMI Inspection Microscope which is the upgrade model for those the user required the basic image capturing & video recording function (W/O basic measurement). It is suitable for speedy inspection on industrial production line because it delivers full HD 1080P images at 60 fps. The build-in 5 object lens offers a parfocal distance at WD 82 mm for continuous zoom in from FOV of 18.3 mm to 2.8 mm with larger magnification.
The digital microscope are now available in two mode, one is for inspection purpose and one is for capturing image:
Mode# 1: USB Connection to a PC (Windows, Mac iOS or Linux)
- Directly connect to your PC or laptop using USB HDMI Image converter
- Save image and record video from your device through the digital microscope
- Device compatibility: Windows 7 and above, Mac OS 10.13+ and Linux with FFmpeg driver
- IR remote control and focus system
- HDMI output with HD 1080p images
- Response time: 30 time frame
- Built-in external light socket
- Power source: DC12V/1A input with 180 cm cable length
.png)
Full HDMI 1080P Digital Microscope
ViTiny digital microscope UM08C delivers full 1080p high resolution images at 60fps. and thus is suitable for speedy inspection on production line.

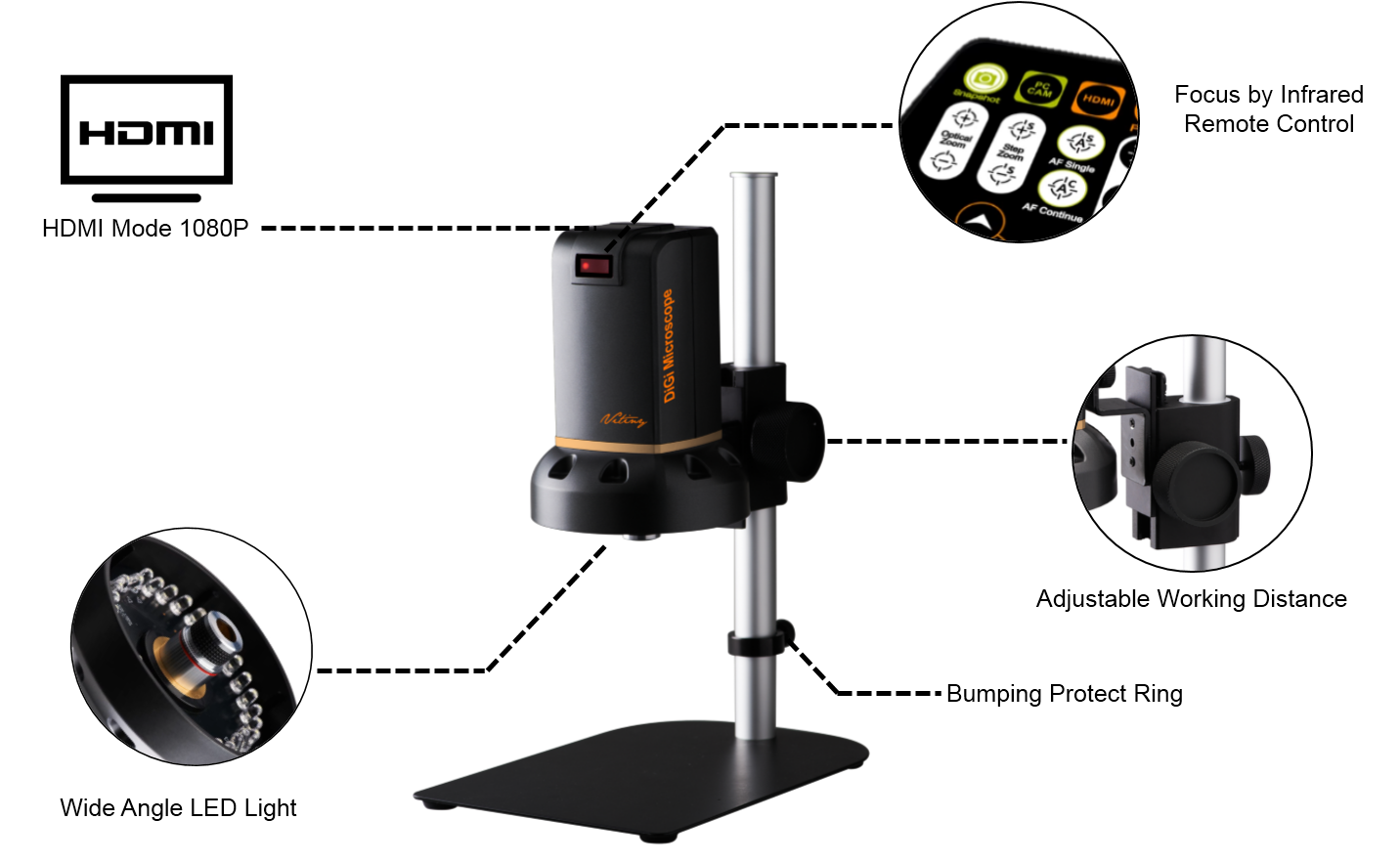

Auto-focus Function
With the built-in Auto-focus function in the device, user can automatically do focusing of their image by pressing only one button on the remote control.

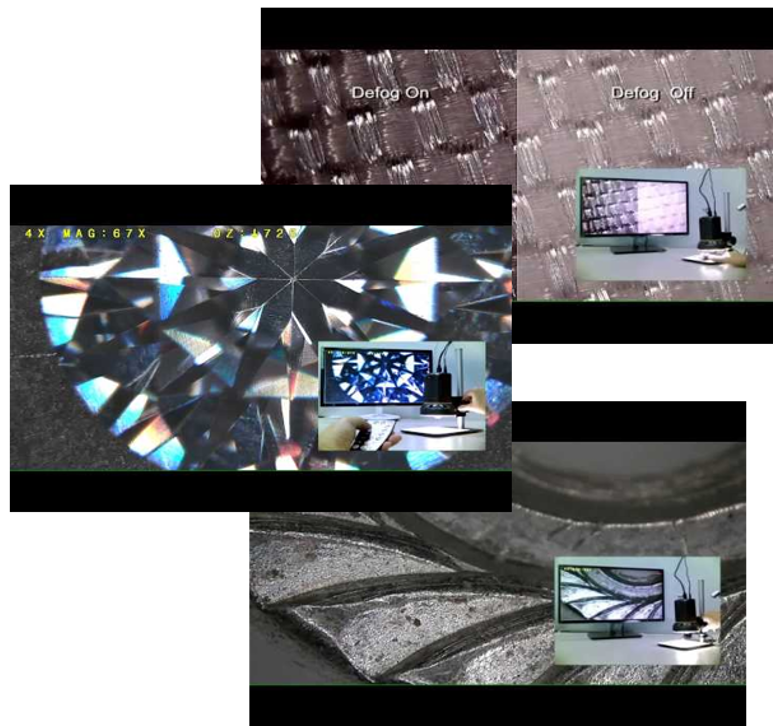

Special Image Effect
Exposure: Shutter, defog real-time image processing
Backlight: Wide Dynamic Range (WDR)
NR: Noise Reduction
Mirror: Rotary Image by Left/Right, Up/Down and 180° Horizontal Rotary
Smart D-Zoom: Assign Area A or/and area B for Digital Enlarge
Negative Image: Reverse Image and Image Stabilization System
Motion: Detect Moving Object
Exposure: Shutter, defog real-time image processing
Backlight: Wide Dynamic Range (WDR)
NR: Noise Reduction
Mirror: Rotary Image by Left/Right, Up/Down and 180° Horizontal Rotary
Smart D-Zoom: Assign Area A or/and area B for Digital Enlarge
Negative Image: Reverse Image and Image Stabilization System
Motion: Detect Moving Object
.png)
.png)
Specifications
Digital Microsope UM08C General Features
- Magnification: 12x to 132x on 21.5″ monitor per4x Lens
- Working distance: 21.8cm to 2.2cm
- CMOS sensor: 2M pixels
- Dimensions: ∅ 106 x 152mm
- Built-in 30 pcs of top view and wide angle LED light, allow to adjust the brighness
- IR remote control focus system for optional manual focus and Auto-focus
- HDMI signal output 1080p
- USB3.0 High speed transmission
- Built-in external ligh socket
- Power supply:DC 5V/2A, cable lengh: 180cm

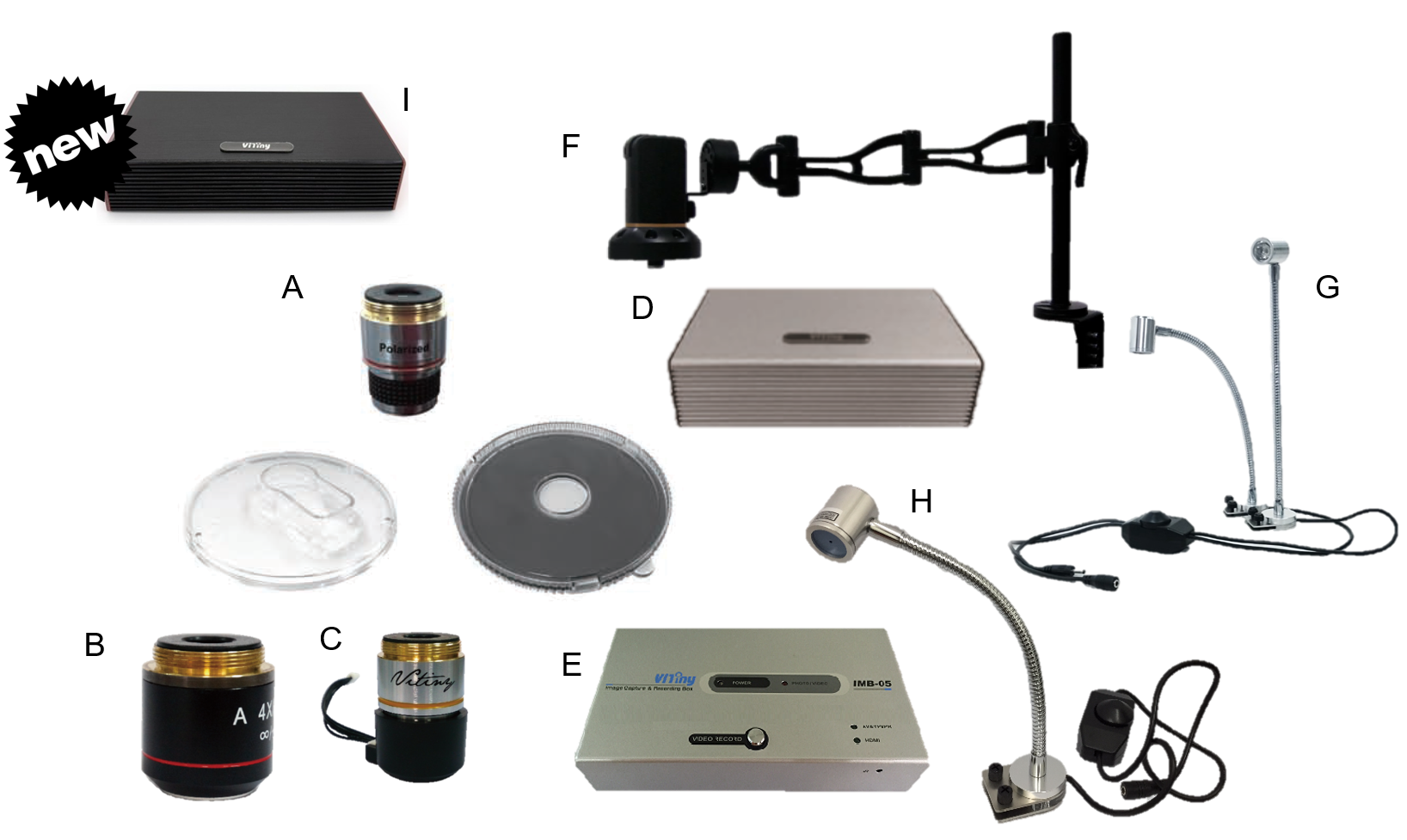

Accessories
.png)
A: Polarizer Lens – Neutralize light rays to avoid interference on the sample
B: 4x Long Focus Lens – To increase working distance for larger work space but at the same time maintain the magnification.
C: 10x Objective Lens – Increase magnification up to 207x – 467x (for 21.5″ monitor)
D: Image Capture Box IMB04 – Connect with ViTiny Digital Microscope UM08 and CPU to save image, record video, and do basic measurement.
E: Image Capture Box IMB05 – Connect with ViTiny Digital Microscope UM08 to save image and record video (no need any CPU connection)
F: Stand S109 – For longer arm of the holder for more flexible movement of the microscope.
G: Gooseneck Light – Decreased light reflection
H: Laser Light – Point out the designated area on the sample using laser beam
NEW! I: Image Capture Box IMB06 – Connect with ViTiny Digital Microscope UM08 and CPU to save image, record video, and do basic measurement.
22″ FULL HDMI MONITOR SPECIFICATIONS
Diagonal Viewing Size
54.61 cm
21.5 Inches (21.5-inch wide viewable image size)
Aspect Ratio
Widescreen (16:9)
Panel Type, Surface
In-plane switching, Glossy with Low-Haze 3H
Optimal Resolution
1920 x 1080 at 60Hz
Contrast Ratio
1000: 1 (typical), Dynamic Contrast Ratio : 8 Million: 1
Brightness
250 cd/m² (typical)
Response Time
6 ms gray to gray (typ)
Viewing Angle
178° vertical / 178° horizontal
Color Support
Color Gamut (typical): 82% (CIE1976), 72% (CIE 1931)
16.78 Million colors
Pixel Pitch
0.248mm
Backlight Technology
LED
Display Type
Widescreen Flat Panel Display
Display Screen Coating
Low Haze with 3H hardness
Audio Output
NA
Video
