Teclock Dial Thickness Gauge,10mm/0.01 SM-114 (Insertion Depth 120mm)
Category: OthersTeclockThickness Gauge
Specifications
Details
Teclock SM-114 Series – Dial thickness gauge with anti-abrasion & long insertion depth for thickness & diameter measurement. Presented by MSP Metrology (M) Sdn Bhd from Teclock Japan.
Features
Ceramic Contact Point
Ceramic contact point and anvil feature are superior for anti-abrasion and rust. In addition, there are steel FE type and AT type which rarely adheres with adhesion tape. As to shape of contact point and anvil, there are standard type and other various kinds.
Measure Thickness & Diameter
Suitable for measuring thickness and diameter of metal, lens, rubber, plastic, paper, felt, hair, pearl etc. in actual dimension.

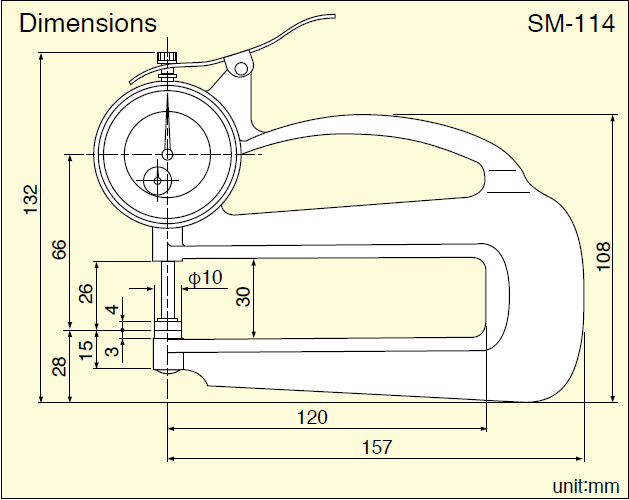

.png)
Full Specifications
| Model | Graduation (mm) | Measuring Range (mm) | Indication Error (μm) | Parallelism (μm) | Dial Reading | Measuring Force (N) | Contact Point Form (mm) | Anvil Form (mm) | Weight (g) |
| SM-114 | 0.01 | 10 | ±15 | 5 | 0-50-100 | 2.5 or less | Ø 10 Flat | Ø 10 Flat | 250 |
| SM-114LS | 0.01 | 10 | ±15 | -- | 0-50-100 | 2.5 or less | Ø 3.2 Ball | Ø 10 Flat | 250 |
| SM-114LW | 0.01 | 10 | ±15 | -- | 0-50-100 | 2.5 or less | Ø 3.2 Ball | Ø 3.2 Ball | 250 |
| SM-114P | 0.01 | 10 | ±15 | 5 | 0-0.5-1 | 2.5 or less | Ø 10 Flat | Ø 10 Flat | 250 |
